Product Description
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | BackPack Jammer |
| Channel Number | 6 |
| Each Bands Power | 13W |
| Total Output Power | 80W |
| Jamming Range | 2-100m |
| Application | Military Units, Prison, Police, Bomb Disposal |

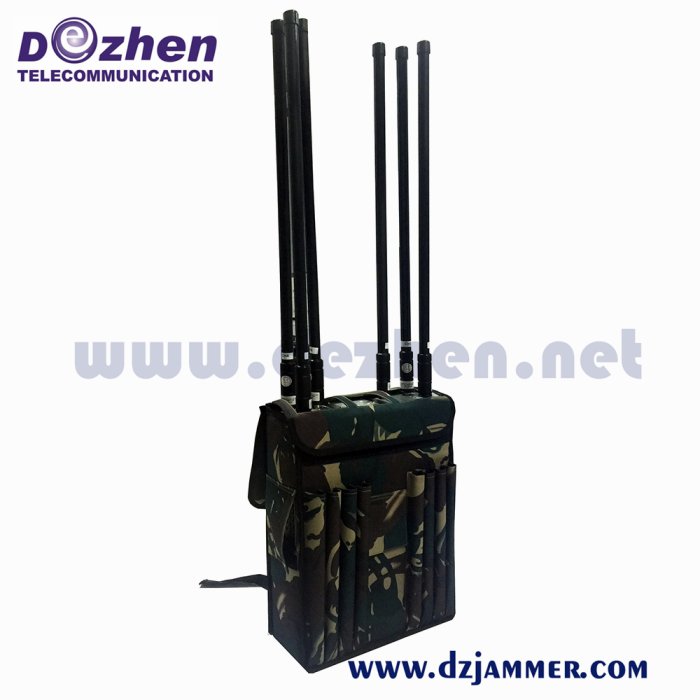

80W High Power VIP Protection Security Cell Phone Signal Backpack Jammer
Product Description:
Manpack jammer GW-VIP MANPACK8,Even though communication jammers originate from battlefront technologies, illicit civil disputes can be resolved when police block communications.
Combat tactics employing Tactical Jammers apply when dealing with hostage situations, domestic disputes, narcotics raids, and other all too familiar scenarios.
This is a User friendly Communication Jammer, easy to operate, and requires no special training to work.
The modular configuration allows the user to choose the frequency bands according the user needs.
Features:
1. High-power Manpack multi-band RF signal jammer.
2. Jam up to four different jamming modules.
3. High portable, back pack type.
4. External LCD display to indicate the battery level.
5. The general design of the system meets military requirements.
Specifications:
| Output Interface | Output Frequency |
| CH1 | -CDMA: 851-960MHz /-GSM: 925-960MHz |
| CH2 | -DCS: 1805-1880MHz |
| CH3 | -PCS: 192-1990MHz |
| CH4 | -3G: 2110-2170MHz |
| CH5 | -4G Wimax: 2300-2400MHz(US) or 2620-2690MHz(EU) |
| CH6 | -4G LTE: 725-770MHz(US) or 790-826MHz(EU) |
| Jammed Signal Freqency: | CDMA,GSM,2.4G WIFI,5.8G WIFI,GPS L1,GPS L2-L5,VHF,UHF.... |
| Type: | Backpack jammer |
| Output Channel: | 6 output channels |
| Power Consumption: | Max: 220W |
| Output power: | 80watt |
| Parameter Shielding Range: | Radius 50-150 meters (-75dBm,depending on the distance of base station in an open filed) |
| Jammer Module Number | 6 |
| HS Code: | 8543709200 |
| Packing: | Box |
| Dimension (not including antennae): | 30 *45 *15cm |
| Technical Parameters: | |
| Net Weight | 20kg |
| Total Weight | 25kg Aviation Case included |
| Ambient Temperature | -10ºC - +50ºC |
| Relative Humidity | ≤80% |
| Power Consumption | ≤360W |
| Power Input | AC100~240V,DC24V |
| Battery | 24V,30AH,Built-in standby battery can used for 90~180 minutes |
| Antenna Parameters | Omni antennas,gain:4~5dBi |
| Switch Control | Manually |
| Equipment Chassis | Metallic Paint |
| Cooling system | Active "smart" with integrated incoming air filter |
| Antennae type: | External high gain Omni directional Antenna |
We could supply customized service by your detail requirements about frequencies setting. 4-8 Frequency modules we can mix very flexibly.Frequency Ranges Selectable:
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Application:
meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year :5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
