Product Description
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA,GSM,2.4G WIFI,5.8G WIFI,GPS L1 |
| Jammer Type | BackPack Jammer |
| Channel Number | 5 |
| Each Bands Power | 18W |
| Total Output Power | 90W |
| Jamming Range | 2-100m |
| Application | Military Units, Prison, Police, Bomb Disposal |

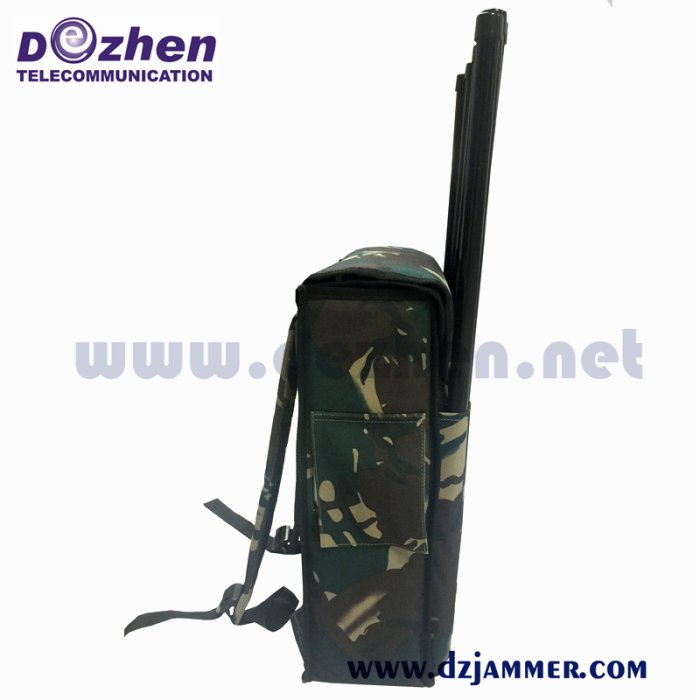

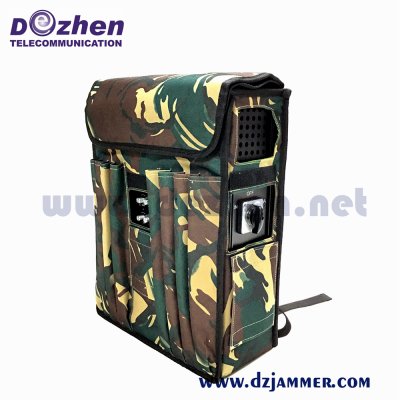

Military High Power GPS WIFI5.8G Drone Signal Jammer VIP Protection Security Backpack Jammer
Product Description:
1 This is full manpack multi band Jamming system is designed with a ruggedized case, light weight, highly mobility and reliance. This device is configured with 6 different jamming modules, the jamming frequency can be more than 8 Bands.
2 It is especially easy to install and operate: simply attach the selected antennas and activate the desired frequency bands. The general design of the system meets military requirements as well as international quality standards and requirements. Our industrial in-house quality management system guarantees highest quality standards in terms of performance, reliable and long-life cycles.
Features:
1. High effective power (channel power) and large radius coverage range.
2. Effective segmentation,Only interfere with the downlink, it will not cause interference to the base station.
3. UHF Broadband Interference Technology.
4. Imported Materials, slow start circuit design can avoid the sparking phenomenon caused by mechanical switch,high integration and stable operation.
5. Perfect self-protection function, when the device is overheated, output over-power, standing wave and other fault alarms,the jammer will automatically turn off the failed module to avoid damage to the jammer;
Specifications:
| Output Interface | Output Frequency |
| CH1 | -WIFI2.4G: 2400-2500MHz |
| CH2 | -WIFI5.8G: 5725-5825MHz |
| CH3 | -GPS: 1550 -1580MHz |
| CH4 | -GPS L2-L5:1100-1300MHz |
| CH5 | -GSM : 850-920MHz |
| Jammed Signal Freqency: | CDMA,GSM,2.4G WIFI,5.8G WIFI,GPS L1,GPS L2-L5,VHF,UHF.... |
| Type: | Backpack jammer |
| Output Channel: | 5 output channels |
| Output power: | 90 watt |
| Parameter Shielding Range: | Radius 5-2000 meters (-75dBm,depending on the distance of base station in an open filed) |
| Jammer Module Number | 5 |
| HS Code: | 8543709200 |
| Packing: | Box |
| Dimension (not including antennae): | 30 *45 *15cm |
| Antenna: | Omnil Antenna |
| Technical Parameters: | |
| Net Weight | 12kg |
| Total Weight | 15kg Aviation Case included |
| Ambient Temperature | -10ºC - +50ºC |
| Relative Humidity | ≤80% |
| Power Consumption | ≤220W |
| Power Input | AC100~240V,DC24V |
| Battery | 24V,30AH,Built-in standby battery can used for 90~180 minutes |
| Antenna Parameters | Omni antennas,gain:4~5dBi |
| Switch Control | Manually |
| Equipment Chassis | Metallic Paint |
| Cooling system | Active "smart" with integrated incoming air filter |
| Antennae type: | External high gain Omni directional Antenna |
We could supply customized service by your detail requirements about frequencies setting. 4-8 Frequency modules we can mix very flexibly.Frequency Ranges Selectable:
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Application:
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
R&D Group in USA
We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.
Manufacturer in CHINA
A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.
We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer, 3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
